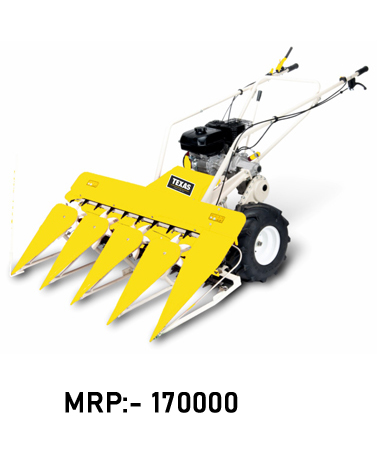

Texas Reaper 120 TG
- Home / Products / Reaper /Texas Reaper 120 TG
Technical Specifications
- Engine :- TEXAS Power Line 170F-3/P
- Type :- Four stroke, single cylinder, inclined,
air cooled,petrol engine
- Capacity (cc) :- 212
- Max.Power Kw/H.P :- 5.0 @ 1800 rpm/6.7 h.p @1800 rpm
- Fuel :- Petrol
- Fuel Tank Capicity (l) :- 3.6
- Av.fuel consumption (l/h) :- 0.9
- Lube oil Grade :- 15W/40
- Lube oil Capacity (l) :- 0.6
- Lubrication System :- Splash
- Starting System :- Manual recoil
- Mass (kg) :- 16
Transmission
- Type of drive :- Gear
- Clutch :- Wet, friction disc multiplate
- Transmission Type :- Sliding mesh
- No of speeds :- 01 forward; 01 reverse
- Oil grade :- SAE 90
- Oil capacity (l) :- 1.0
- Handle Bar :- Adjustable
Reaper
- Max.Working width(mm) :- 1200
- Stub height (mm) :- 50
- Mass (kg) :- 120
Special Features
- Introducing TEXAS REAPER 120TG gasoline self propelled reaper with "Direct Gear Drive with oil immersed mutilate plate Clutch", thus eliminating Pulley & Belt for Superior Performance .
- It is a multipurpose machine that packs many functions into a small and manageable body.
- Easily cut and harvest various crops with less effort.
- This machine has large and wide tyres which make it balance for different types of terrain and uneven surfaces.
- Whether you have plain surface farm, sloping field or a rocky surface this reapers make the job easy.
- It is a man held and self-propelled reaper and also used as a paddy harvester machine for harvesting paddy from the field.
- It is 5 hp petrol machine with consumption of 900 ml per hour.
- This can reap paddy, wheat & Ragi and other crops.
- Reaper 120TG has adjustable handlebar, lightweight & compact design, safe & reliable with clutch locking system to provide extra safety, low vibration & minimum grain loss.
