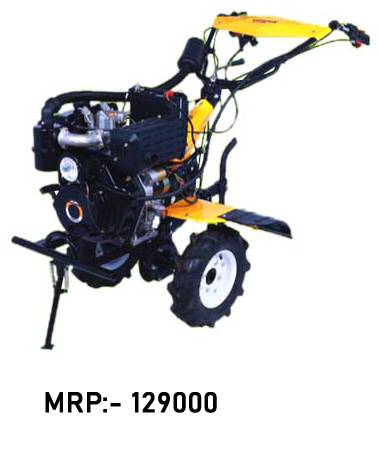

Texas Alligator 9DPE
- Home / Products / Power Weeder / Texas Alligator 9DPE
TECHNICAL SPECIFICATIONS
- Engine :- TEXAS Power Line TD 900 E
- Type :- Four stroke, single cylinder, vertical, air cooled, direct injection, Diesel engine
- Bore/Stroke (mm) :- 86/72
- Capacity (cc) :- 418
- Valve Clearance (mm) :- In:0.20; Ex:0.25
- Max.Power Kw/H.P :- 6.5 @ 3300 rpm/8.71 h.p @3300
- Max.torque (Nm/rpm) :- 20 /2900
- Compression Ratio :- 19
- Fuel :- Diesel
- Fuel Tank Capicity (l) :- 5
- Av.fuel consumption :- 0.9 l/h
- Lube oil Grade :- 15W/40
- Lube oil Capacity (l) :- 1.65
- Lubrication System :- Pressure & splash
- Fuel injection fimimg (°) :- 21+1 BTDC
- Injector Pressure (kg/cm²) :- 200+5
- Starting System :- Self starter & manual recoil
- Battery Rating :- 36 AH 12 V
- Mass (kg) :- 47
Transmission
- Type of drive :- Gear
- Clutch :- Wet, friction disc multiplate
- Transmission Type :- Sliding mesh
- No of speeds :- 02 forward; 01 reverse
- Oil grade :- SAE 90
- Oil capacity (l) :- 2.2
- Handle Bar :- Adjustable
- Max.Working width(mm) :- 1380
- Working depth (mm) :- 100
- Av.rate of working (hr/acre) :- 2
- Mass (kg) :- 142
Special Features
- Four stroke, single cylinder, air cooled, diesel DI engine
- Fuel consumption is about 0.8 to 0.9 lts per hour only
- Compact design
- Low running cost, less maintainance.
- Less vibration, easy to handle
- Electic start
- Quick after sales service
- Adequate spares parts stock
- Direct PTO to transmission, no belts, no chains- no power loss
- Multiplate wet clutch-zero slippage
- Light weight heavy duty aluminium die-casting transmission case
- Multi functional-Tilling, weeding, ploughing, ridging, water pumping, spaying,haulage etc., & many more jobs can be done
- Transmission PTO is available
