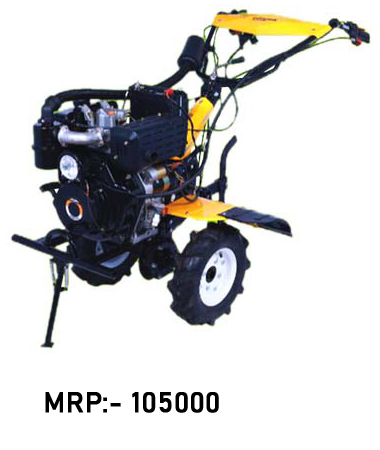

Texas Alligator 5DP

Products

Description

  • This machine is highly recommended to carry out de weeding operations and primary cultivation for small and medium scale. Being a diesel engine and very low fuel consumption, it is highly beneficial for farmers in terms of operational cost
  • It comes with multiple optional attachments, viz paddy wheel for wetland cultivation, 3-3 deep rotary blades for breaking hard soil, potato ditcher to ditch potatoes from field, adjustable plough to loosen the soil or turn the soil, single plough to make small beds, ridger to form ridge between the rows.
  • This machine is also equipped with PTO Shaft having equal rpm of the engine can be used to drive water pump for pumping of water in field and also sprayer can be used to spray pesticides and other nutrients. It can also utilize in many ways from the engine direct shaft as prime mover.
  • This machine runs in diesel fuel having fuel capacity of 2.2 ltrs. An extra provision of side disc is provided for proper balancing/ safety of machine Under normal operation conditions and load, fuel consumption is around 700 ml per hour **( vary operator to operator and soil condition)

Technical Specifications


Engine

  • Engine :- TEXAS TXW173F
  • Type :- Four stroke, single cylinder, vertical, air cooled, direct injection, Diesel engine
  • Capacity (cc) :- 247
  • Max.Power Kw/H.P :- 4.0 @ 3300 rpm/5 h.p @3300
  • Max.torque (Nm/rpm) :- 12/2900
  • Fuel :- Diesel
  • Fuel Tank Capacity(l) :- 3
  • Av.fuel consumption :- 0.6 l/h
  • Lube oil Capacity (l) :- 1.1
  • Lubrication System :- Pressure & splash
  • Starting System :- Manual Recoil
  • Mass (kg) :- 25

Transmission

  • Type of drive :- Gear
  • Clutch :- Wet, friction disc multiplate
  • Transmission Type :- Sliding mesh
  • No of speeds :- 02 forward; 01 reverse
  • Oil grade :- SAE 90
  • Oil capacity (l) :- 1.5
  • Handle Bar :- Adjustable
  • Max.Working width(mm) :- 860
  • Working depth (mm) :- 100
  • Av.rate of working (hr/acre) :- 2
  • Mass (kg) :- 96
