Description

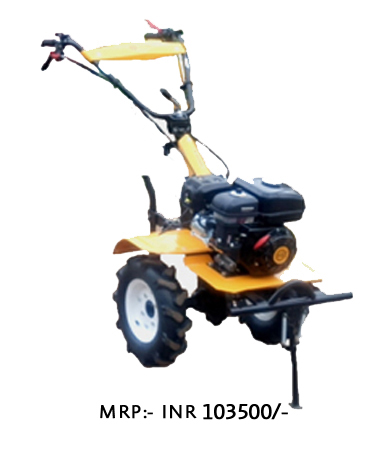

  • This machine isMultipurpose power weeder equipped with PTO shaft and highly recommended to carry out de weeding operations/inter cultivation/ primary cultivation etc, for small and medium scale. Being a petrol engine of higher HP and very low fuel consumption, it is highly beneficial for farmers in terms of operational cost.
  • Multiple(optional ) attachments, viz paddy wheel for wetland cultivation, 3-3 deep rotary blades for breaking hard soil, potato ditcher to ditch potatoes from field, adjustable plough to loosen the soil or turn the soil, single plough to make small beds, ridger to form ridge between the rows, HTP Sprayer, Water pump set ( open well) , Seed drill etc.
  • The machine is supplied with front rotors having a standard adjustable tilling width of 36’’ & 44’’(inches), and optional 24’’ (inches)
  • This machine can be fitted with a small trailer to pull the load up to one ton( only for Agriculture related work in the field)
  • This machine is also equipped with PTO Shaft having equal rpm of the engine can be used to drive water pump for pumping of water in field and also sprayer can be used to spray pesticides and other nutrients. It can also utilize in many ways from the engine direct shaft as prime mover.
  • This machine runs in petrol fuel having fuel tank capacity of 3.6ltrs. An extra provision of side disc isprovided for proper balancing of machine Under normal operation conditions and load, fuel consumption is around 750ML to 1 .0 lit per hour ** ( vary operator to operator and soil condition)

Technical Specifications


Engine

  • Engine:- TEXAS Power Line TGH117F
  • Type :- Four stroke, single cylinder, inclined, air cooled,petrol engine
  • Capacity (cc):- 212
  • Max.Power Kw/H.P :- 4.8@ 3300 rpm/6.5 h.p @3300 rpm
  • Max.torque (Nm/rpm) :- 15.17 /2700
  • Fuel :- Petrol
  • Fuel Tank Capacity(l):- 3.6
  • Av.fuel consumption (l/h):- 1.0
  • Lube oil Grade:- 15W/40
  • Lube oil Capacity (l):- 0.6
  • Starting System:- Manual recoil
  • Mass (kg):- 15

Transmission

  • Type of drive:- Gear
  • Clutch:- Wet, friction disc multiplate
  • No of speeds :- 02 forward; 01 reverse
  • Oil grade:- SAE 90
  • Handle Bar :- Adjustable
  • Max.Working width(mm:- 1110
  • Working depth (mm):- 100
  • Av.rate of working (hr/acre):- 2.5
  • Mass (kg) Eng+Trans:- 88
